    Stainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw Thread

    Ask Lasest Price
    Brand Name : Runtai
    Model Number : Tapping Screws
    Certification : ISO9001/TS16949
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5ton/day
    Delivery Time : 14-21 days
    • Product Details
    • Company Profile

    Stainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw Thread

    Stainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw Thread


    Products Description


    These 18-8 stainless steel screws have a hardened steel drill point to penetrate steel and are coated to increase corrosion resistance. All have a hex head for a secure grip with a wrench and a flange to reduce the risk of crushing thin metal. They save you time and effort by drilling their own holes and fastening in a single operation. Length is measured from under the flange. Head height includes the flange.

    .
    Products Specification

    MaterialUltra-Corrosion-Resistant Coated 18-8 Stainless Steel
    Screw SizeNo. 10
    Screw Size Decimal Equivalent0.19"
    Length1 1/4"
    Drill Tip
    TypeNo. 3
    Length1/4"
    Maximum Drilling Thickness0.15"
    Head
    Width0.313"
    Height0.193"
    Flange Diameter0.414"
    Drive StyleExternal Hex
    Approximate Threads per Inch16
    Thread DirectionRight Hand
    ThreadingFully Threaded
    Tapping MethodThread Forming
    Tapping Screw TypeBSD
    Head TypeHex
    Hex Head ProfileStandard
    Tip TypeDrilling
    Tip MaterialSteel
    Shank Cross SectionRound
    Screw FeaturesFlanged
    System of MeasurementInch
    For Use InSteel, Stainless Steel, Sheet Metal
    RoHSCompliant

    Note: Material, Size and Surface Treatment for choose. OEM and ODM Products is welcomed

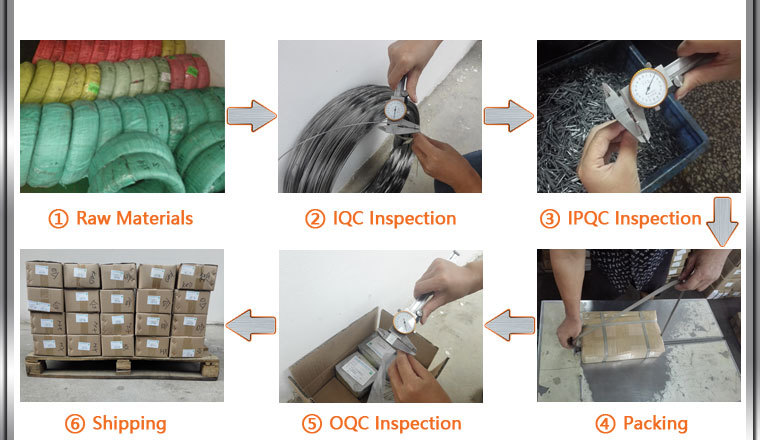

    How to Production

    Comapny Production Equipment

    More Products Pictures

    Stainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw ThreadStainless Steel Hexagon Flange Head Drilling Screw With Tapping Screw Thread
